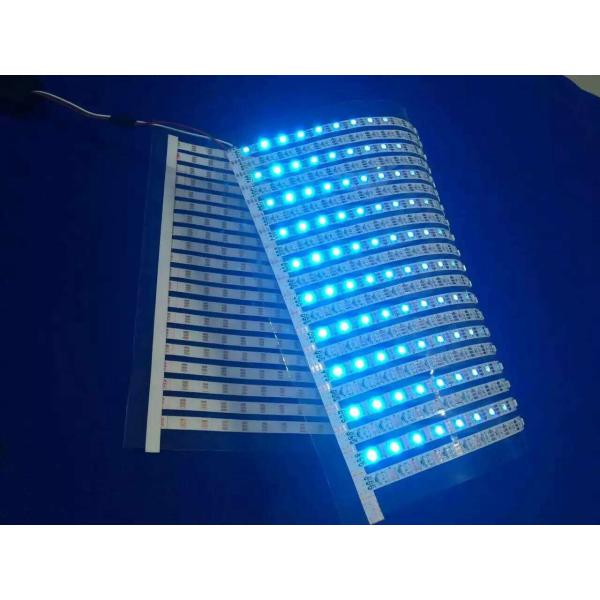

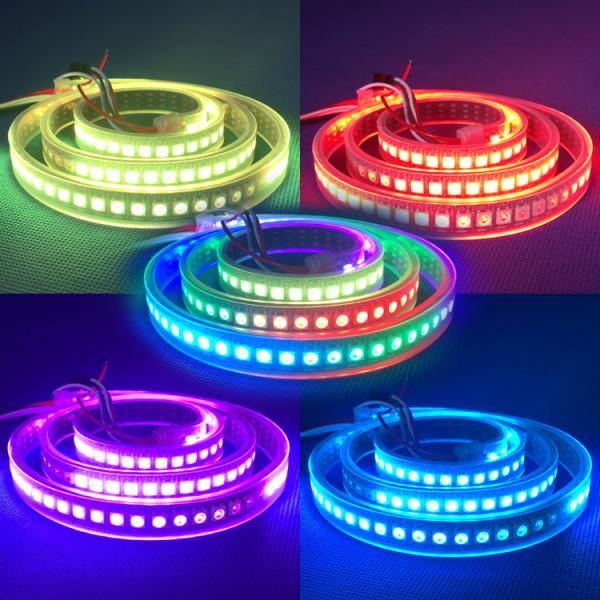

Waterproof P6.9mm SK6812 3535 Digital Addressable Led Strip
Specification
- IP Rating: IP21
- Wattage: 18w per metre
- Voltage: 5V
- IC Type: SK6812
- Colour Temperature: RGBW
- Number of LEDs: 60 per metre
- Control Resolution: 1 LED
- Tape Width: 10mm
- Cut Points: Every 17mm
Applications:
The excellent light and user-friendly designs make LED strips perfect for numerous applications, i.e cove lights, backlights, cabinet lights, edge light, architectural lights for the corridor, canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee/wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Features and Benefits :
- - Control IC included supporting numerous color-change effects;
- - Control by SD controller, DMX512, Artnet
- - Flexible PCB 5V low voltage input;
- - PCB color: White & Black available for choose
- - Absolutely addressable, each IC built inside RGB LED
- - 1Meter per PCS, Customer’s size available also
Technical Parameters:
| Light source |  3535 |
| Beam angle | 120 deg. |
| Operating voltage | DC5V |
| Consumption watts per 144 LEDs/M | 34.56(max)W |
| Pixel pitch(mm) | P6.9mm |
| PCB width | 5mm |
| Entire piece LED quantity | 144 pcs |
| Printed circuit board thickness | 0.25mm |
| Operation Temperature | -40℃-40℃ |
| Storage Temperature | -10℃-50℃ |
Technical Parameter
| Part Number | Emitting color | LED Quantity | Voltage (V) | IC | Current (A/1m) | Lumen per 1m/144LED |
| TS-3535-144 | RGB | 144/M | 5 | SK6812 | 6.8A | R288/G720/B216 lm Non-waterproof |
| TS-3535-144 | RGB | 144/M | 5 | SK6812 | 6.8A | R288/G720/B216 lm Silicon Tube |
There is a Arrow following each LED on PCB, it’s means the signal transmit direction
